Feature Introduction:

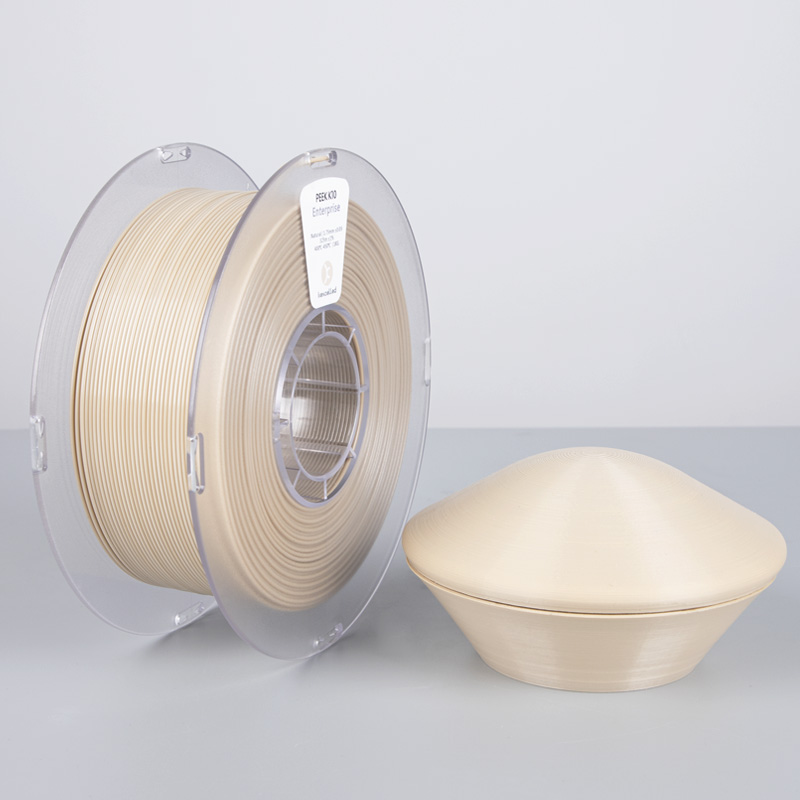

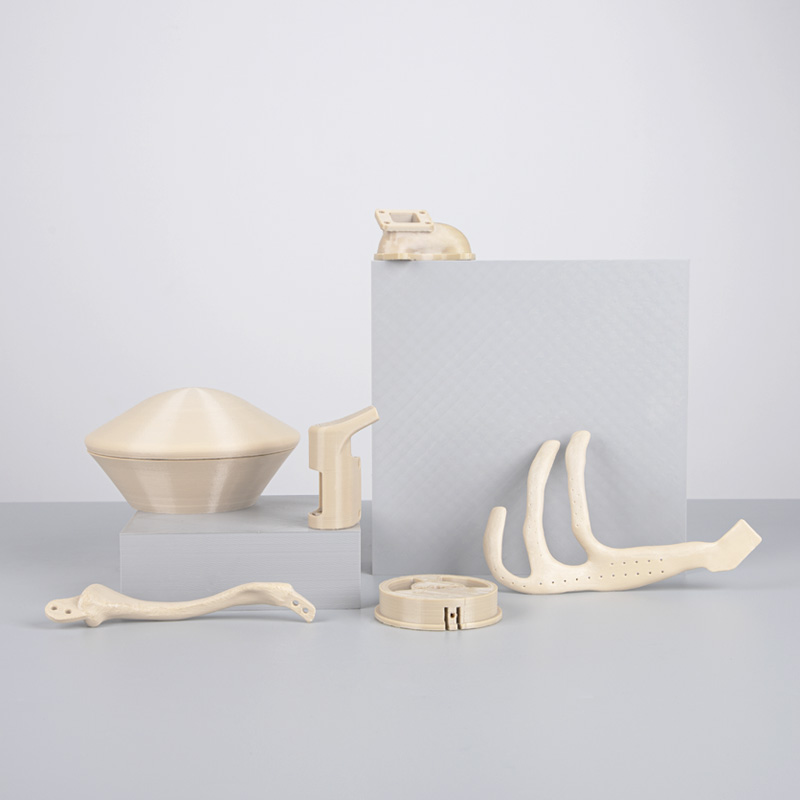

THE K11™ PEEK is a PEEK material applicable to the FDM process. As a representative material for specialty plastics, it is designed to have high mechanical and thermal performance, as well as self-extinguishment, resistance to radiation, solvents, and most chemicals, and bio-compatibility. With multiple excellent properties, PEEK K10 is not only applicable to precise electronic parts, but also to those requiring high-temperature resistance and flame resistance, and some medical devices.
Basic Physical Properties:
| THE K11™ PEEK | Printed copy (horizontal printing of sample, 100% linear filling) | Injection molded parts | Test standards |
| Density (g/cm3) | 1.3 | ISO 1183 | |
| Melt index (g/10min) * 1 | 14-18 | ISO 1133 | |
| Thermal deformation temperature (℃) * 2 | 150 | ISO 75 | |
| Vicat softening temperature (℃) * 3 | / | ISO 306 | |
| Tensile strength (MPa) | 70-80 | ISO 527 | |
| Tensile elongation at break (%) | 4-6 | ||
| Bending strength (MPa) | 110-120 | ISO 178 | |
| Bending modulus (MPa) | 2400-2600 | ||
| Notched impact strength (KJ/m2) | 60-70 | ISO 179 | |
| Notch impact strength (KJ/m2) | 14-18 | ||
*1. Test condition: temperature (T)=220 ℃; Mass (m)=10kg.
*2. Test condition: bending stress=0.45MPa; Heating rate=120 ℃/h.
*3. Test condition: load=10N; Heating rate=120 ℃/h.
